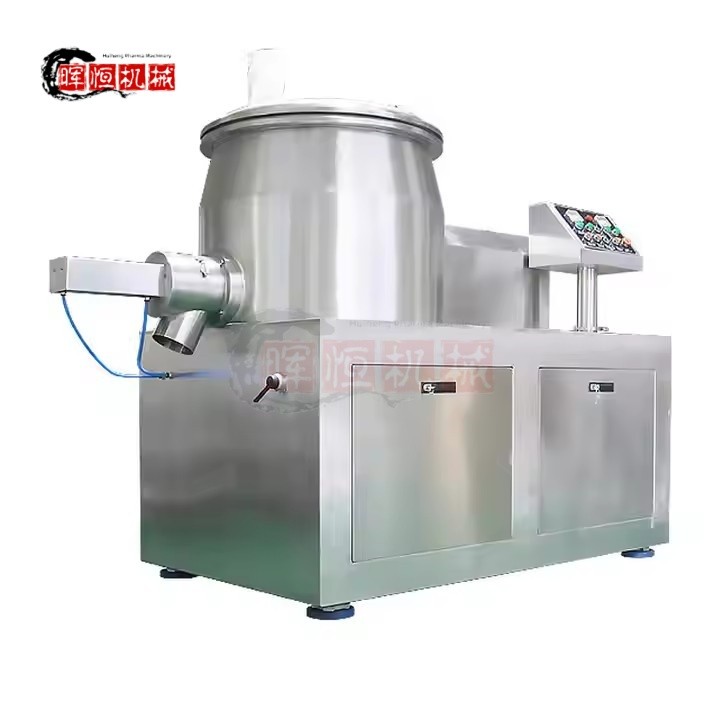

SHH-GHL Series GMP standard High Speed Wet Mixing Granulator

SHH-GHL Series GMP standard High Speed Wet Mixing Granulator

Name: GMP standard High Speed Wet Type Mixing Granulator
Brand: HUIHENG PHARMA
Model: SHH-GHL250
Capacity: Max.100kg

SHH-GHL Series GMP standard High Speed Wet Mixing Granulator

Main Application

high speed mixer granulator is widely used in, food, chemical and light industries. etc, to blend powdery materials and granulate.

Work Principle

The blending and granulating procedures and completed in the same vessel of the granulator. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.

Features

1. Boller cover automatic lift, easy close and operation.

2. Conic chamber, materials rolling evenly.

3. Open window and easy operation.

4. Touching screen with dynamic work image and vivid in operation.

5. 45-degree discharging outlet, the granules are completely discharged.

6. V-shaped granulating blade works in inclusion motion, and will keep the materials from entering the gap between V-shaped granulating blades and blades to become a corner, so it can mix evenly.

7. Inter-layer jacket cooling and automatic temperature control can improve the quality of granules.

8. 36-degree Zigzag mixing paddles work in three-dimensional motion. The distance between the mixing paddles and the surface of boiler button is 0.5-1.5mm, so it can mix evenly. There are few residues left on the boiler wall, so it can reduce friction and save 25% energy.

9. It is of labyrinth sealing construction. The rotary axel cavity can automatically spray and clean, featuring reliability in sealing and ease in cleaning.

Product Application

Food and feed, Ceramic products, Plastic, rubber, tires, Polymers and resins, Biochemical products, Chemicals and Fertilizers, Perfume, Pigments and dyes, Vegetable and plant extracts, Fragrance, Food crops.

Technical Parameters:

Model	SHH-GHL50	SHH-GHL150	SHH-GHL200	SHH-GHL250	SHH-GHL300	SHH-GHL400
Volume (L)	50	150	200	250	300	400
Capacity(kg/batch）	15	50	80	100	130	200
Mixing speed(rpm)	200/400	180/270	180/270	180/270	140/220	106/155
Mixing power(kw)	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22
Cutting speed(rpm)	1500/3000	1500/300	1500/300	1500/300	1500/300	1500/300
Cutting power(kw)	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8
Amount of compressed air(m³/m)	0.6	0.9	0.9	0.9	1.1	1.5
