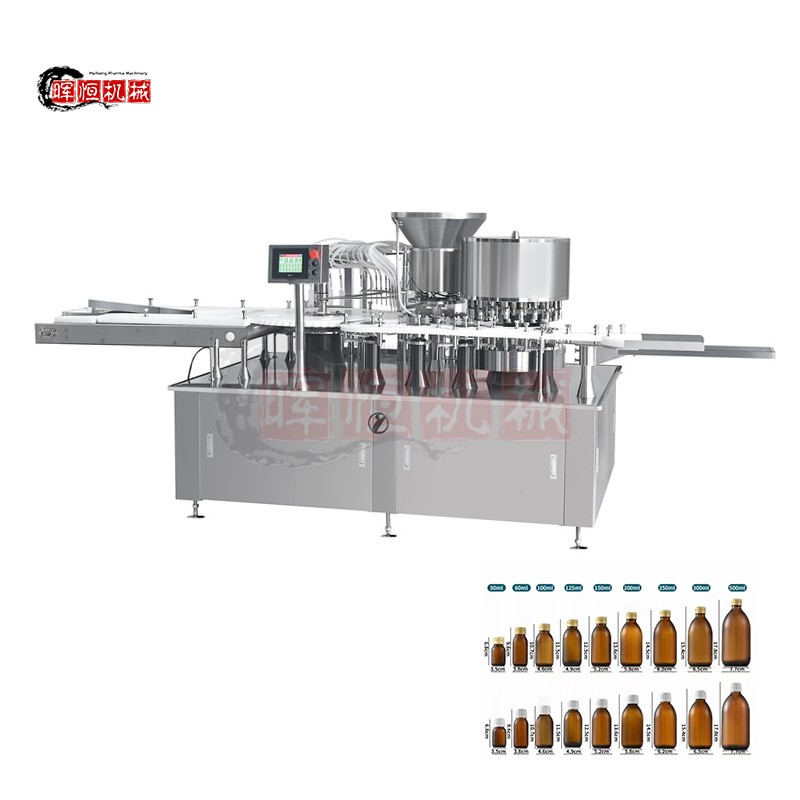

Automatic Syrup Filling Machine Oral Liquid Filling Capping Labeling Machine

Automatic Syrup Filling Machine Oral Liquid Filling Capping Labeling Machine

Name: Automatic Syrup Filling Machine Oral Liquid Filling Capping Labeling Machine
Brand: HUIHENG PHARMA
Model: SHH-OYT4

Automatic Syrup Filling Machine Oral Liquid Filling Capping Labeling Machine

Usage:
This machine is mainly used for syrup, drinks, soybean sauce, vinegar, cod-liver oil, olive oil, liquid calcium, wine, liquid fertilizer, essential oil, toner, hair oil, laundry detergent, ink, disinfectant, injection, industrial alcohol and various medical liquid filling and capping.

Features:
1. Adopts plunger type metering pump filling, high precision;The structure of pump adopts fast disassembly institutions, easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
5. Machine body is made of 304 stainless steel, full compliance with GMP standard.

Technical Parameter

Model	SHH-OYT4	SHH-OYT8
Filling head number	4	8
Capping head number	1	2
Filling volume	50-500ml	50-500ml
Capacity	10-40 bottles/min	40-80 bottles/min
Filling accuracy	≥99%	≥99%
Pass rate	≥ 98%	≥ 98%
Power supply	1Ph.220V, 50/60Hz	1Ph.220V, 50/60Hz
Pass rate	≥ 99% (Depends on quality of packing material)	≥ 99% (Depends on quality of packing material)
Power	0.6-0.8Mpa	0.6-0.8Mpa
Power	1.6kw	2.2kw
Net weight	600kg	800kg
Machine dimension	L2200W1500H1900mm	L2600W1600H2000mm
