ZP420T-17G Veterinary Medicine Tablet Press

Name: ZP420T-17G Veterinary Medicine Tablet Press
Brand: HUIHENG PHARMA
Model: ZP420T

ZP420T-17G Veterinary Medicine Tablet Press

Description：

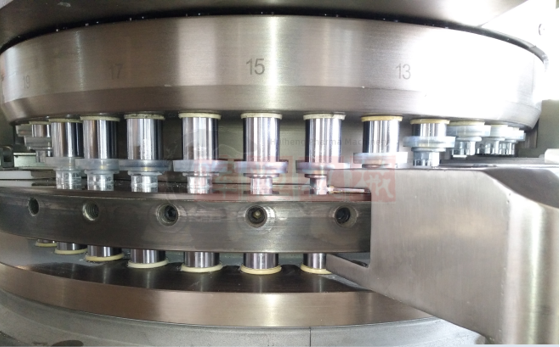

This machine is designed for pressing all kinds of granular materials into a round plate, and is suitable for batch production of the basic equipment. Rotary speed, the depth of the filling and tablet thickness can be adjusted. The mechanical buffer device can avoid the overload and cause damage to the machine. The machine can be another match suction powder box, through the suckers to absorb dust, avoid bonding jams, and recycle raw materials to use.

MAIN TECHNICAL DATA

Quantity of Punch&die(Set)	17
Max. Pressure (KN)	150~180
Max. Dia. of Tablet (Milimetre)	40
Max. Depth of Filling (Milimetre)	40
Max. Thickness of Tablet (Milimetre)	18
Rotate Speed (r/min)	20
Production Capacity (pc/h)	22800
Eectric power source(V/Hz)	11kw 380/50 V/Hz
Outside Measurement (Milimetre)	920×890×1540
Weight(Kilogram)	2500
