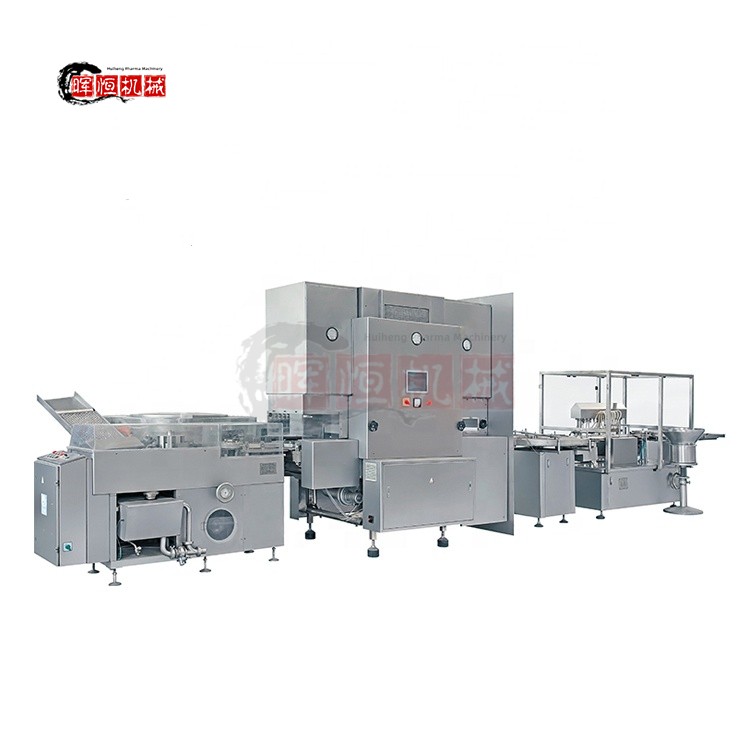

Automatic Pharmaceutical Glass Injectable Vial Liquid Filling Sealing Washing and Capping Machine

Automatic Pharmaceutical Glass Injectable Vial Liquid Filling Sealing Washing and Capping Machine

Name: Automatic Pharmaceutical Glass Injectable Vial Liquid Filling Sealing Washing and Capping Machine
Model: SHH-KZ series

Automatic Pharmaceutical Glass Injectable Vial Liquid Filling Sealing Washing and Capping Machine

Features

1. The compact line realizes single linkage, continuous operation from washing, sterilizing & drying, filling & stoppering and capping. The whole production process realizes cleaning operation; protects products from contamination, meets the GMP production standard.

2. Full servo control.
3. Transparent self-lifting protective cover with humid air outlet, electric screw control, safe and easy to maintenance.
4. For customers' liquid medicine and filling accuracy requirements, the ceramic pump filling system is selected, which can effectively ensure the filling accuracy and can be flexibly switched.
5. The stoppering form of inserting while rotating can effectively ensure the stoppering effect.
6. Capping machine: No Vial – No Capping, No Stopper – No Capping, Vacuum absorb aluminum scrap device.

Technical Parameters:

Model	Production line	Suitable size	Output(max)	Power	Net weight	Overall size
SHH-KZ I	CLQ 40	2-25 ml	6000-12000 pcs/h	69.8 KW	7500 Kg	9930×2500×2340 mm
	RSM 620/4250
	KGF 8
SHH-KZ II	CLQ 60	2-25 ml	8000-18000 pcs/h	85.8 KW	8000 Kg	10830×2500×2340 mm
	RSM 620/6000
	KGF10
SHH-KZ III	CLQ 80	2-25 ml	10000-24000 pcs/h	123.8 KW	8100 Kg	10830×2500×2340 mm
	RSM 900/10000
	KGF 12
